PPA Wise UV Car scan system (Undercar imaging system, Undercar camera)

Confidence in security as well Camera system scan And check under the car PPA Wise UV by helping to prevent unforeseen events Such as the destruction with the Car Bomb, the bomb hiding under the gold car etc.

PPA Wise UV is excellent for reading accurate car registration numbers. Resulting in no weakness in the search and comparison of images under the car with previous times

coin
Computer olympics
Naval Headquarters

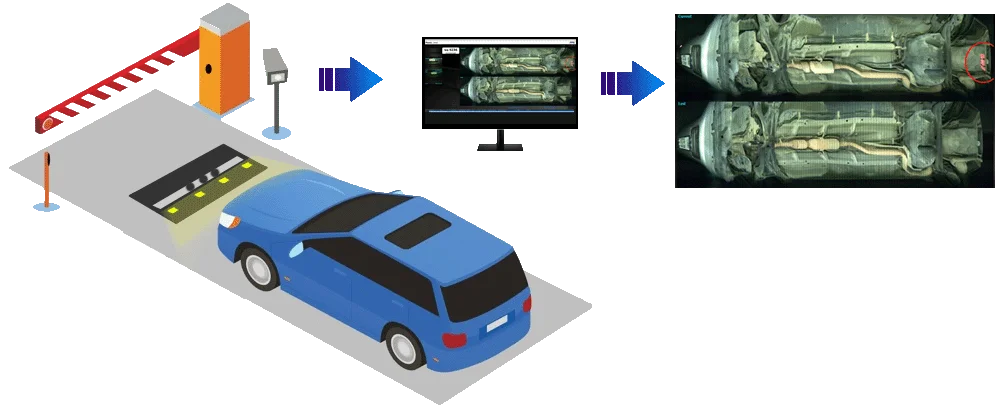

Use the PPA Wise UV Auto Alert camera system to take pictures, scan and inspect the underside of cars passing in and out.

Auto alert

Locations that are likely to be foreign objects, including Car Bomb

Read license plates with the highest accuracy.

From the actual use that has license plate scratches, dirt, day and night, rain, fog, etc. (refer to the accuracy ofSpecification document)

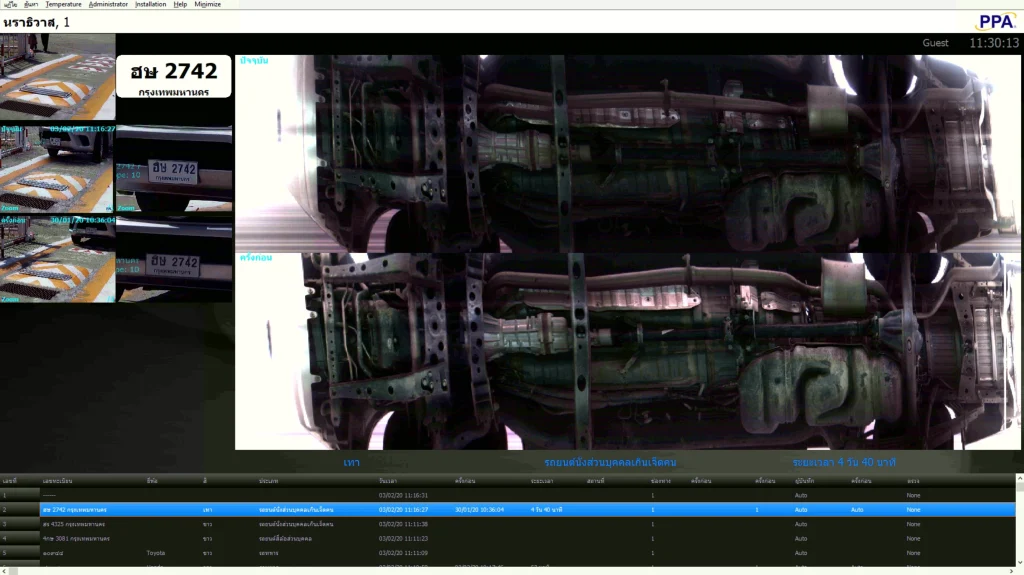

Last pass

Compare images under the car. With the last time Including car images, locations, times, etc.

Search for cars by registration number

For example, a car in question must be found immediately using the Search button.

Blacklist Alert

Automatic notification of suspicious registration numbers

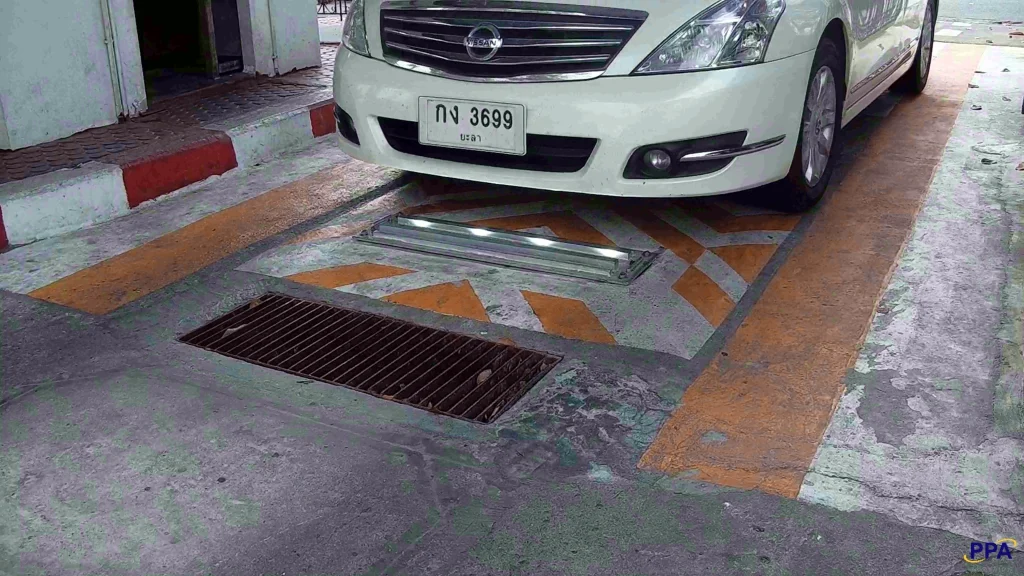

Flatbed version

No obstacles on the road surface By smooth buried on the road surface

Mobile version

Mobile type, can be moved later Complete installation in 30 minutes

Large / Sub Control Center

Supports both the headquarters control center And sub-control centers of each area

Can buy programs only

Can buy both Full system Full Service or SpecificThe programTake pictures, scan and inspect the underside of the car DIY System.

API

Supports development, connection with other systems

PPA Innovation Company Limited

mobile

Reserve backup mobile Line line email

Datasheet

PPA Wise UV 2019A

 Under Vehicle Surveillance System And read the license plate



PPA License Plate 2019A

License plate reading system



Auto Alert, where the possibility of being a foreign object is high
Read auto car registration number





 DETECTOR

Brand

PPA

Junior

Model

Wise uv

Flex

Keen



Basic

Auto Detect

Basic

Multi

City

Multi

City

Basic

License plate picture

1 picture per 1 car

Image Overview

1 picture per 1 car

Driver image (option supplement)

1 image per 1 car (in the case of a car, it should be a side mirror image The driver reduces the glass before reaching the checkpoint by approximately 1-20 meters according to usage.)

Under the car view

1 color image per 1 car

Size 1,280 x 640 pixels

Suggesting a position that is highly likely to be a foreign object By comparing photos under the car

After passing the system no. 2 onwards

The accuracy of reading the first line registration number

Of the license plate of the Department of Land Transport *

95.5%

90%

Read province name/Foreign city name signs

Yes

Yes

Yes

Yes

Yes

Option

Option

The accuracy of reading the province name

Of the license plate of the Department of Land Transport **

94%

Thai license plates that support (Auto Detect)



General car*** Or general motorcycle (One)

Only cars

Yes

General car*** And general motorcycles (both at)

Option

Cars of people in diplomatic missionsCars of persons in consular delegation

Yes

Yes

Option

Yes

Option

Option

Option

Military vehicle

Yes

Yes

Option

Yes

Option

Option

Option

Police Car

Yes

Yes

Option

Yes

Option

Option

Option

Foreign license plates supported

(Auto Detect)















General Laos cars and motorcycles

Only cars

Yes

Option

Yes

Option

Option

Option

General Myanmar cars and motorcycles

Yes

Option

Yes

Option

Option

Option

Automobiles and motorcycles in general Cambodia

Yes

Option

Yes

Option

Option

Option

General cars and motorcycles

Yes

Option

Yes

Option

Option

Option

General Malaysia cars and motorcycles.

Yes

Option

Yes

Option

Option

Option

General cars and motorcycles in Singapore

Yes

Option

Yes

Option

Option

Option

Car registration type analysis***

Yes

Yes

Yes

Yes

Yes

Option

Option

Accuracy of car brand analysis

90%

60%

60%

Car color analysis

White, gray, black, red, orange, brown (including bronze, gold), yellow, blue, green, pink, purple

Accuracy of car color analysis

70%

60%

60%

Car model analysis and model year

Option

Supported lighting conditions

24 hours (day, night, twilight, rain, haze at a clearly visible registration number)

Supported license plate frame

All types including without frames, Silver frame, Flat long decorative label frame, Black frame, etc.

The distance from the camera to read the license plate

425 Meters when installing according to standards

Other distances when changing lenses/Camera set up by expert

Maximum supported car speed (km / h)/watch.)

3(General doors)

250 (General roadOr according to the camera angle)

3(General doors)

Option 250 (General road,Or according to the camera angle)

Width of license plate reading area

(Per cameraStraight angle caseDepends on camera resolution and camera angleUsed to calculate the number of channels supported Reference general license plate location)

3 m.

(1 waysDo not support the straddle vehicle)

4.5 m.

(about The channel according to the camera angle supports the car straddling the middle lane. Support multiple cars in the camera at the same timecamera 2M 1920 & #215; 1080 pixels)



Option Other sizes and change the camera and computer model

License plate image size/Driver picture (if there is)

Case picture 2MP Use up to 1 image per areaMB

(Set the image resolution, add the number of record days as needed)

Image size crop (Zoom in front of the carIf enabled)

Not over used space 100KB When installing according to the manual

Under car image size

Not over used space 1MB



Image size of license plate video and driver

(Set on the cameraIf enabled)

·   Video signal 2,326 Kbps 2MP 10 frame / sec Use an area not more than 30GB /day/camera

·   Video signal 7,196 Kbps 2MP 10 frame / sec Not over used space 80GB /day/camera

Number of continuous recording days

(Image under the car)License Plate, crop, driverExample of setting license plate record 2MP And automatically delete old pictures when arriving 450GB)

In the case of entrances and exits at general locations 500 Cars / Channels / Days do not record images. crop Save approximately 150 day

·   In the case of general roads 10,000 Cars / Channels / Days Save approximately 23 day

·   In the case of entrances and exits at general locations 500 Cars / Channels / Days Save approximately 450 day

·   In the case of recording images crop Reduced days 10%

·   In the case of having a driver camera The number of days is reduced by half.

Number of continuous video recording days

(For example, in case of setting up license plates for video recording 2,326 Kbps 2MP Automatically delete old images on arrival 450GB)

·   about 15 day

·   In the case of having a driver camera The number of days is reduced by half.

Processing time

2-4 Seconds / car

0.2-1 Seconds / car

Under the car photography equipment.

– Imaging system

– Image resolution



– Lighting system

– Material

– format



Line Scan

13.8M At 5 km/watch.,

2.3M At 30 km/watch.

LED Automatic when there is a car

stainless

Smooth to the road surface (support static load 10 ton)

or mobile Place on the road surface (size 790 x 186 x 62 mm)

License plate light

Infrared Option Spotlight LED To seeCar coloring at night

computer system

Microsoft Windows 64bit, LCD Monitor 24”, Hark Disk 1TB, UPS 700VA Or better

Counting from the number of cars running through the camera Except there are obstructions or abrasions at the character's prominent position such as head or tail characters

** Counting from the number of cars running through the camera Except there are obscures

*** Personal truckPersonal car more than seven peopleHire cars carrying no more than seven passengersPersonal four wheel vehicleCar service business Sightseeing car And car rental servicesbusSmall busBusPickup truck or vanNon-fixed truckPersonal truck



COMMAND CENTER

Number of continuous recording days

(Image under the car)License Plate, crop, driverExample of setting license plate record 2MP And automatically delete old pictures when arriving 900GB)

·   In the case of taking pictures under the car General entrance Channel about 500 Cars / Channels / Days do not record images. crop Save approximately 300 day

·   In the case of not taking pictures under the car

o In the case of general roads 10 Channel about 10,000 Cars / Channels / Days Save approximately 4.5 day

o In the case of entrance and exit of general locations Channel about 500 Cars / Channels / Days Save approximately 450 day

o In the case of recording images crop Reduced days 10%

o In the case of having a driver camera The number of days is reduced by half.

computer system

Microsoft Windows 64bit, LCD Monitor 24”, Hark Disk 1TB, UPS 700VA Or better



 COMMON FEATURE

Detector and Command Center

Main screen

Car information 20 latest searches

Registration numberCar registration typeUnder car image (when using Detector Supported models)Vehicle pictures and registrationdate and timeplaceChannels and information Lass Pass Compare the car with the last passing checkpoint.

Last pass Compare cars And the latest checkpoint that the car ran through

Under car image (when using Detector Supported models)Vehicle pictures and license plates, date and time, place, ways,period of time

Defining the display channel

None / This Detector /The specified channel of the specified location / all channels in the specified location / all channels in the system



Type or edit the registration number by staff.

Yes

Recording

Recorded data

Registration numberCar registration typeUnder car image (when using Detector Supported models)Vehicle pictures and registrationdate and timeplacewaysInformant

Save data in itself (Offline Mode)

Yes

Data encryption

Semq2 Or not encrypted

Real Time Synchronization

adjust Database between the Detector And Command center All designated machines To be synchronized automatically at all times, For the period of network failure, each device will save data in itself. When the network resumes normal operation Each machine will automatically synchronize the database at the time of network failure.

Automatically delete old data

Set size Database as you want

Searching

Search conditions

Registration numberCar registration typeDate timeplacewaysInformantWarning message (Supports many conditions together)

Search with nearby registration numbers

Part of the registration number Or the registration number does not match 1 character

Search result display

List Of all related cars Each vehicle shows information Registration numberType of carUnder car image (if any)License plate imageImage crop, Driver's picture (if any), date and timeplaceThe channel of the current and last time (if any) and include the time

Report

Show car info

The same as showing search results (Searching) And select only column Preferred

Format

Html Supported Microsoft Excel And Internet explorer

Watch List

Notification format

Dialog, Warning sound, Email

Car list

0-10,000 vehicles with a note box or a charge of any offense in both Thai and English

Member

Notification format

Show member information as required On the main screen such as the owner's name, house, number, or department name

Member list

0-10,000 cars with membership information box

User Account

Every system in the system is shared.

Yes

number User Account

unlimited

editing User Account

Add / remove User, Set each license User according Function

API

Engine Mode

Open system API And closed the advanced management system including Last Pass, Video Recorder, User Account, Sync, Lock Screen

Option: Open system API With an advanced management system

Talk

(Option supplement)

Voice reading notification message for Member And Watch List

Read any messages that the user typed. Can spell words that are not in the dictionary, such as human names. Supports Thai sentences mixed with English characters without switching speech. Pronounce Thai and English Thai accents without recording. And does not require an internet connection

Others

system Lock screen Prevent access to the computer for other purposes

Prevent entry Games, Windows Task Manager, Start Menu, Desktop, Short Cut "Ctrl + Alt + Del", "Alt + Tab" etc

Time Synchronization

Yes

Power lost policy

The system resumes automatically after the power goes out.



DIAGRAM
